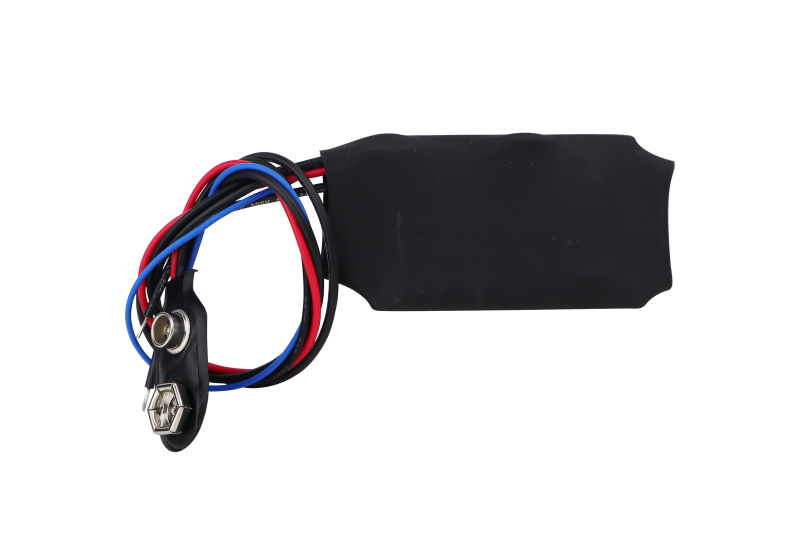

SETMC1C9V Universal single-channel transmitter

Ref: F1002000024

The SETMC19V is a small single channel transmitter by CDVI. Converts a standard switch into a radio switch. It is ideal for fitting into exit buttons

This small single channel transmitter converts a standard switch into a radio switch. It is ideal for fitting into exit buttons or any project where cabling is difficult due to factors such as glass walls or listed buildings.

Scroll to learn more

SETMC1C9V : Why choosing that product?

  • Single-channel universal transmitter
  • Turns any standard contact into a radio frequency signal
  • Up to 1000m range in open space
  • Open connections (push-to-make)
  • Ideal for push-to-exit buttons when cabling is difficult

SETMC1C9V : Downloads & links

SETMC1C9V : Features

  • Technical specifications

    • Min Temperature (°C)
      -20
    • Max Temperature (°C)
      80
    • Channels
      1
    • Frequency
      433.92 MHz
    • Modulation
      AM/ASK
    • Encoding
      KeeLoq® hopping code
    • Range in Open Field (m)
      Up to 1,000m in open field
  • Electrical specifications

    • Voltage AC/DC
      DC
    • Max Power Consumption (mA)
      17
    • Battery included
      9V battery (6LR61)
  • Certifications

    • IP Rating
      IP65
  • Dimensions

    • Product Height (mm)
      45
    • Product Width (mm)
      28
    • Product Depth (mm)
      6
    • Product Weight (kg)
      0.012
